Working with Files
The AggFlow DMprogram can import and export files from previous versions of AggFlow and from the projects or revisions inAggFlow DM. You must be a Design user to import a folder as a project, or save a project or a revision to a file.
Importing and Opening Files
Hover Over Image to Enlarge
Files can be brought into the program from the DM control panel, or from the AggFlow worksheet as follows:

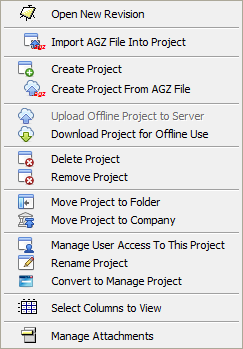

- Under Projects or by right clicking on a project, "Create Project From AGZ file" as project to import all previous version file types of AggFlow (AGG, PL5, PL6, AGZ and AGZX files) as an individual project. The file will be imported as a new project with a revision that can be opened as the imported file.
- Under Projects or by right clicking on a project, "Import AGZ file Into Project", to add the file as a revision to that existing project.
- From the worksheet, under File, to open a file as a new revision to the project. This will open a new worksheet with the selected file.
- Using Drag and Drop. Files can be selected and dragged onto the project worksheet to be added as a project. Multiple files can also be added to the worksheet, by selecting a folder with the files in them and dragging and dropping these into a company. Subfolders in the folder can also be brought into the DM control panel and these will be listed as folders under the company name that they were added to.
Saving a Revision to File
Project Revisions inAggFlow DMcan be saved as individual files. Revisions can be saved as follows:
- To save a revision as a file, right click on the revision to save and select "Save to File." The file will be saved in an export folder in your Documents folder.
