Notes, Coloring and Drawing Tools
Hover Over Image to Enlarge
Customize the plant layout by adding notes, coloring and drawing arrows, boxes and circles to highlight specific items or entire sections of the worksheet.
Use these tools to:
- Define or highlight specific areas, pieces of equipment, and flow streams in the plant.
- Add Titles to the worksheet and make notes or comments.
- Add “symbols” to display auxiliary equipment in the plant.
- Paint flow streams and sections of a plant layout
- Define areas in a report or plant diagram for printing.
Hover Over Image to Enlarge

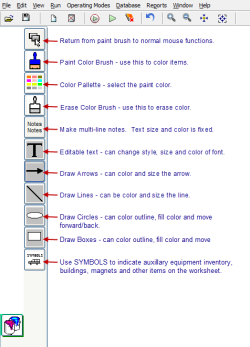

- Select the Notes and Paint category.
- Select the action to take.
- Paint, draw or make notes as desired. For painting:
- Select the paint brush (the mouse will turn into a paint brush).
- Select the color to be used from the color palette.
- Hover over the item and left-click it to color it.
- Use the clear paintbrush to remove color.
To change style, scale and color of the machine icons: Select the machine and right-click, then choose Change Style/Scale/Color from the short-cut menu.
To Use Notes, Coloring and Drawing Tools
