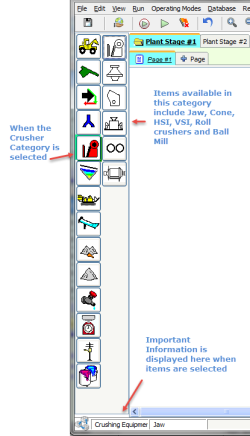

Two columns on the left of the worksheet provide equipment options. The left column is for Equipment Categories (colored icons) and the right column is the Equipment in that category (black and white icons) that can be used on the worksheet. When you select a category, the available equipment will appear on the right.
AggFlow DM allows individual or multiple selections of Cut, Copy and Paste within a worksheet, to pages and stages, and to other worksheets. When equipment is copied and pasted, the setup for that equipment is also copied and pasted. If a second piece of equipment is needed or even a duplicate flow sheet, copy and paste can be used to replicate equipment in the worksheet or on another page, stage or worksheet.
- to copy the equipment, select the equipment and it turns Blue. Multiple equipment, flow lines, etc. can be selected by holding down the shift key.
- To select a window of equipment, move the pointer to the corner of the window and hold down the left mouse button and move the pointer to select all equipment in a window.
- If multiple equipment is selected, hold the pointer over one item of equipment and by holding the left mouse button down, all the equipment can be moved together.
- Multiple equipment selections can be copied or cut and pasted into other sheets.
- Undo is available to undo a placement or movement of equipment items.
Assign custom text and Machine ID's to equipment to identify equipment in reports, and in results. Assigning equipment ID provides unique naming for modes reports, manage modes, configuration advisor and for printing reports.
Custom text and Equipment ID's are attached to the equipment and will move and copy/pasted with the equipment. Equipment ID's can be used to reflect the actual identification system used in the field.
Equipment ID's are also useful for other modules that will be added to Manage Projects.
Only the black and white icons in the right column can be placed on the worksheet. It is possible to add, delete or move (select and drag) equipment on the worksheet at any time.
To Select and Place Equipment
